QGridLayout ¶

概要 ¶

详细描述 ¶

QGridLayout takes the space made available to it (by its parent layout or by the parentWidget() ), divides it up into rows and columns, and puts each widget it manages into the correct cell.

列和行的行为等同；我们将讨论列，但行也有等效函数。

Each column has a minimum width and a stretch factor. The minimum width is the greatest of that set using setColumnMinimumWidth() and the minimum width of each widget in that column. The stretch factor is set using setColumnStretch() and determines how much of the available space the column will get over and above its necessary minimum.

Normally, each managed widget or layout is put into a cell of its own using addWidget() . It is also possible for a widget to occupy multiple cells using the row and column spanning overloads of addItem() and addWidget() . If you do this, QGridLayout will guess how to distribute the size over the columns/rows (based on the stretch factors).

要从布局移除 Widget，调用 removeWidget() 。调用 hide() on a widget also effectively removes the widget from the layout until show() 被调用。

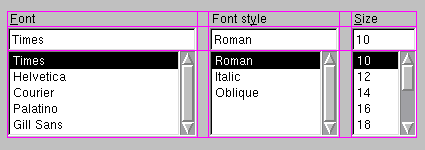

This illustration shows a fragment of a dialog with a five-column, three-row grid (the grid is shown overlaid in magenta):

Columns 0, 2 and 4 in this dialog fragment are made up of a QLabel ， QLineEdit , and a QListBox. Columns 1 and 3 are placeholders made with setColumnMinimumWidth() . Row 0 consists of three QLabel objects, row 1 of three QLineEdit objects and row 2 of three QListBox objects. We used placeholder columns (1 and 3) to get the right amount of space between the columns.

Note that the columns and rows are not equally wide or tall. If you want two columns to have the same width, you must set their minimum widths and stretch factors to be the same yourself. You do this using setColumnMinimumWidth() and setColumnStretch() .

若 QGridLayout is not the top-level layout (i.e. does not manage all of the widget’s area and children), you must add it to its parent layout when you create it, but before you do anything with it. The normal way to add a layout is by calling addLayout() on the parent layout.

Once you have added your layout you can start putting widgets and other layouts into the cells of your grid layout using addWidget() , addItem() ，和 addLayout() .

QGridLayout also includes two margin widths: the contents margin 和 spacing() . The contents margin is the width of the reserved space along each of the QGridLayout ‘s four sides. The spacing() is the width of the automatically allocated spacing between neighboring boxes.

The default contents margin values are provided by the style . The default value Qt styles specify is 9 for child widgets and 11 for windows. The spacing defaults to the same as the margin width for a top-level layout, or to the same as the parent layout.

另请参阅

QBoxLayout QStackedLayout 布局管理 基本布局范例

class QGridLayout ¶

QGridLayout(parent)

param parent

QWidget

构造新栅格布局。

You must insert this grid into another layout. You can insert widgets and layouts into this layout at any time, but laying out will not be performed before this is inserted into another layout.

构造新 QGridLayout with parent widget, parent . The layout has one row and one column initially, and will expand when new items are inserted.

PySide2.QtWidgets.QGridLayout. addItem ( item , row , column [ , rowSpan=1 [ , columnSpan=1 [ , alignment=Qt.Alignment() ] ] ] ) ¶

参数

• item – QLayoutItem

• row – int

• column – int

• rowSpan – int

• columnSpan – int

• alignment – Alignment

添加 item 在位置 row , column , spanning rowSpan rows and columnSpan columns, and aligns it according to alignment 。若 rowSpan and/or columnSpan is -1, then the item will extend to the bottom and/or right edge, respectively. The layout takes ownership of the item .

警告

Do not use this function to add child layouts or child widget items. Use addLayout() or addWidget() 代替。

PySide2.QtWidgets.QGridLayout. addLayout ( arg__1 , row , column [ , alignment=Qt.Alignment() ] ) ¶

参数

• arg__1 – QLayout

• row – int

• column – int

• alignment – Alignment

Places the layout at position ( row , column ) in the grid. The top-left position is (0, 0).

对齐方式的指定通过 alignment 。默认对齐为 0，意味着 Widget 填充整个单元格。

A non-zero alignment indicates that the layout should not grow to fill the available space but should be sized according to sizeHint() .

layout becomes a child of the grid layout.

PySide2.QtWidgets.QGridLayout. addLayout ( arg__1 , row , column , rowSpan , columnSpan [ , alignment=Qt.Alignment() ] ) ¶

参数

• arg__1 – QLayout

• row – int

• column – int

• rowSpan – int

• columnSpan – int

• alignment – Alignment

这是重载函数。

This version adds the layout layout to the cell grid, spanning multiple rows/columns. The cell will start at row , column spanning rowSpan rows and columnSpan columns.

若 rowSpan and/or columnSpan is -1, then the layout will extend to the bottom and/or right edge, respectively.

PySide2.QtWidgets.QGridLayout. addWidget ( arg__1 , row , column [ , alignment=Qt.Alignment() ] ) ¶

参数

• arg__1 – QWidget

• row – int

• column – int

• alignment – Alignment

添加给定 widget to the cell grid at row , column . The top-left position is (0, 0) by default.

对齐方式的指定通过 alignment 。默认对齐为 0，意味着 Widget 填充整个单元格。

PySide2.QtWidgets.QGridLayout. addWidget ( arg__1 , row , column , rowSpan , columnSpan [ , alignment=Qt.Alignment() ] ) ¶

参数

• arg__1 – QWidget

• row – int

• column – int

• rowSpan – int

• columnSpan – int

• alignment – Alignment

这是重载函数。

This version adds the given widget to the cell grid, spanning multiple rows/columns. The cell will start at fromRow , fromColumn spanning rowSpan rows and columnSpan columns. The widget will have the given alignment .

若 rowSpan and/or columnSpan is -1, then the widget will extend to the bottom and/or right edge, respectively.

PySide2.QtWidgets.QGridLayout. cellRect ( row , column ) ¶

参数

• row – int

• column – int

返回类型

QRect

Returns the geometry of the cell with row row and column column in the grid. Returns an invalid rectangle if row or column is outside the grid.

警告

in the current version of Qt this function does not return valid results until setGeometry() has been called, i.e. after the parentWidget() is visible.

PySide2.QtWidgets.QGridLayout. columnCount ( ) ¶

返回类型

int

Returns the number of columns in this grid.

PySide2.QtWidgets.QGridLayout. columnMinimumWidth ( column ) ¶

参数

column – int

返回类型

int

Returns the column spacing for column column .

另请参阅

setColumnMinimumWidth()

PySide2.QtWidgets.QGridLayout. columnStretch ( column ) ¶

参数

column – int

返回类型

int

Returns the stretch factor for column column .

另请参阅

setColumnStretch()

PySide2.QtWidgets.QGridLayout. getItemPosition ( idx ) ¶

参数

idx – int

Returns the position information of the item with the given index .

The variables passed as row and column are updated with the position of the item in the layout, and the rowSpan and columnSpan variables are updated with the vertical and horizontal spans of the item.

另请参阅

itemAtPosition() itemAt()

PySide2.QtWidgets.QGridLayout. horizontalSpacing ( ) ¶

返回类型

int

另请参阅

setHorizontalSpacing()

PySide2.QtWidgets.QGridLayout. itemAtPosition ( row , column ) ¶

参数

• row – int

• column – int

返回类型

QLayoutItem

Returns the layout item that occupies cell ( row , column )，或 None if the cell is empty.

另请参阅

getItemPosition() indexOf()

PySide2.QtWidgets.QGridLayout. originCorner ( ) ¶

返回类型

Corner

Returns the corner that’s used for the grid’s origin, i.e. for position (0, 0).

另请参阅

setOriginCorner()

PySide2.QtWidgets.QGridLayout. rowCount ( ) ¶

返回类型

int

Returns the number of rows in this grid.

PySide2.QtWidgets.QGridLayout. rowMinimumHeight ( row ) ¶

参数

row – int

返回类型

int

Returns the minimum width set for row row .

另请参阅

setRowMinimumHeight()

PySide2.QtWidgets.QGridLayout. rowStretch ( row ) ¶

参数

row – int

返回类型

int

Returns the stretch factor for row row .

另请参阅

setRowStretch()

PySide2.QtWidgets.QGridLayout. setColumnMinimumWidth ( column , minSize ) ¶

参数

• column – int

• minSize – int

Sets the minimum width of column column to minSize 像素。

另请参阅

columnMinimumWidth() setRowMinimumHeight()

PySide2.QtWidgets.QGridLayout. setColumnStretch ( column , stretch ) ¶

参数

• column – int

• stretch – int

Sets the stretch factor of column column to stretch . The first column is number 0.

The stretch factor is relative to the other columns in this grid. Columns with a higher stretch factor take more of the available space.

The default stretch factor is 0. If the stretch factor is 0 and no other column in this table can grow at all, the column may still grow.

An alternative approach is to add spacing using addItem() 采用 QSpacerItem .

另请参阅

columnStretch() setRowStretch()

PySide2.QtWidgets.QGridLayout. setDefaultPositioning ( n , orient ) ¶

参数

• n – int

• orient – 取向

Sets the positioning mode used by addItem() 。若 orient is Horizontal , this layout is expanded to n columns, and items will be added columns-first. Otherwise it is expanded to n rows and items will be added rows-first.

PySide2.QtWidgets.QGridLayout. setHorizontalSpacing ( spacing ) ¶

参数

spacing – int

另请参阅

horizontalSpacing()

PySide2.QtWidgets.QGridLayout. setOriginCorner ( arg__1 ) ¶

参数

arg__1 – Corner

Sets the grid’s origin corner, i.e. position (0, 0), to corner .

另请参阅

originCorner()

PySide2.QtWidgets.QGridLayout. setRowMinimumHeight ( row , minSize ) ¶

参数

• row – int

• minSize – int

Sets the minimum height of row row to minSize 像素。

另请参阅

rowMinimumHeight() setColumnMinimumWidth()

PySide2.QtWidgets.QGridLayout. setRowStretch ( row , stretch ) ¶

参数

• row – int

• stretch – int

Sets the stretch factor of row row to stretch . The first row is number 0.

The stretch factor is relative to the other rows in this grid. Rows with a higher stretch factor take more of the available space.

The default stretch factor is 0. If the stretch factor is 0 and no other row in this table can grow at all, the row may still grow.

另请参阅

rowStretch() setRowMinimumHeight() setColumnStretch()

PySide2.QtWidgets.QGridLayout. setVerticalSpacing ( spacing ) ¶

参数

spacing – int

另请参阅

verticalSpacing()

PySide2.QtWidgets.QGridLayout. verticalSpacing ( ) ¶

返回类型

int

另请参阅

setVerticalSpacing()
