QStyleOptionToolBar ¶

详细描述 ¶

QStyleOptionToolBar contains all the information that QStyle functions need to draw QToolBar .

For performance reasons, the access to the member variables is direct (i.e., using the . or -> operator). This low-level feel makes the structures straightforward to use and emphasizes that these are simply parameters used by the style functions.

QStyleOptionToolBar class holds the lineWidth 和 midLineWidth for drawing the widget. It also stores information about which area the toolbar should be located in, whether it is movable or not, which position the toolbar line should have ( positionOfLine ), and the toolbar’s position within the line ( positionWithinLine ).

In addition, the class provides a couple of enums: The ToolBarFeature enum is used to describe whether a toolbar is movable or not, and the ToolBarPosition enum is used to describe the position of a toolbar line, as well as the toolbar’s position within the line.

对于可以如何使用样式选项的演示范例，见 样式 范例。

另请参阅

QStyleOption

class QStyleOptionToolBar ¶

QStyleOptionToolBar(other)

QStyleOptionToolBar(version)

param other

QStyleOptionToolBar

param version

int

构造 QStyleOptionToolBar , initializing the members variables to their default values.

构造副本为 other 样式选项。

构造副本为 other 样式选项。

PySide2.QtWidgets.QStyleOptionToolBar. StyleOptionType ¶

This enum is used to hold information about the type of the style option, and is defined for each QStyleOption 子类。

常量	描述
QStyleOptionToolBar.Type	The type of style option provided ( SO_ToolBar for this class).

The type is used internally by QStyleOption , its subclasses, and qstyleoption_cast() to determine the type of style option. In general you do not need to worry about this unless you want to create your own QStyleOption subclass and your own styles.

另请参阅

StyleOptionVersion

PySide2.QtWidgets.QStyleOptionToolBar. StyleOptionVersion ¶

This enum is used to hold information about the version of the style option, and is defined for each QStyleOption 子类。

常量	描述
QStyleOptionToolBar.Version	1

The version is used by QStyleOption subclasses to implement extensions without breaking compatibility. If you use qstyleoption_cast() , you normally do not need to check it.

另请参阅

StyleOptionType

PySide2.QtWidgets.QStyleOptionToolBar. ToolBarPosition ¶

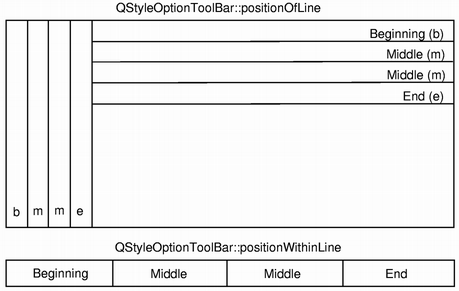

This enum is used to describe the position of a toolbar line, as well as the toolbar’s position within the line.

The order of the positions within a line starts at the top of a vertical line, and from the left within a horizontal line. The order of the positions for the lines is always from the parent widget’s boundary edges.

常量	描述
QStyleOptionToolBar.Beginning	The toolbar is located at the beginning of the line, or the toolbar line is the first of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar.Middle	The toolbar is located in the middle of the line, or the toolbar line is in the middle of several lines. There can several toolbars (and lines) with this position.
QStyleOptionToolBar.End	The toolbar is located at the end of the line, or the toolbar line is the last of several lines. There can only be one toolbar (and only one line) with this position.
QStyleOptionToolBar.OnlyOne	There is only one toolbar or line. This is the default value of the positionOfLine and positionWithinLine 变量。

另请参阅

positionWithinLine positionOfLine

PySide2.QtWidgets.QStyleOptionToolBar. ToolBarFeature ¶

This enum is used to describe whether a toolbar is movable or not.

常量	描述
QStyleOptionToolBar.None	The toolbar cannot be moved. The default value.
QStyleOptionToolBar.Movable	The toolbar is movable, and a handle will appear when holding the cursor over the toolbar’s boundary.

另请参阅

features isMovable()

PySide2.QtWidgets.QStyleOptionToolBar. positionOfLine ¶

PySide2.QtWidgets.QStyleOptionToolBar. positionWithinLine ¶

PySide2.QtWidgets.QStyleOptionToolBar. toolBarArea ¶

PySide2.QtWidgets.QStyleOptionToolBar. features ¶

PySide2.QtWidgets.QStyleOptionToolBar. lineWidth ¶

PySide2.QtWidgets.QStyleOptionToolBar. midLineWidth ¶
