QConicalGradient ¶

概要 ¶

详细描述 ¶

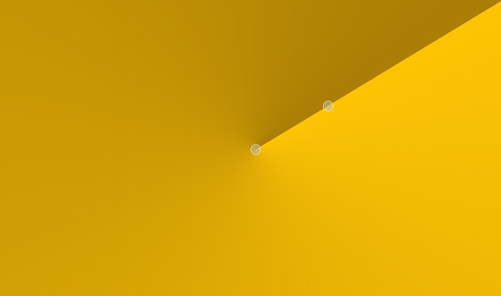

Conical gradients interpolate interpolate colors counter-clockwise around a center point.

The colors in a gradient is defined using stop points of the QGradientStop type, i.e. a position and a color. Use the setColorAt() 或 setStops() function to define the stop points. It is the gradient’s complete set of stop points that describes how the gradient area should be filled. If no stop points have been specified, a gradient of black at 0 to white at 1 is used.

In addition to the functions inherited from QGradient ， QConicalGradient class provides the angle() and center() functions returning the start angle and center of the gradient.

注意： setSpread() function has no effect for conical gradients. The reason is that the conical gradient is closed by definition, i.e. the conical gradient fills the entire circle from 0 - 360 degrees, while the boundary of a radial or a linear gradient can be specified through its radius or final stop points, respectively.

另请参阅

QLinearGradient QRadialGradient The Gradients Example

class QConicalGradient ¶

QConicalGradient(QConicalGradient)

QConicalGradient(center, startAngle)

QConicalGradient(cx, cy, startAngle)

param QConicalGradient

QConicalGradient

param startAngle

qreal

param cx

qreal

param cy

qreal

param center

QPointF

Constructs a conical with center at (0, 0) starting the interpolation at angle 0.

另请参阅

setColorAt() setCenter() setAngle()

Constructs a conical gradient with the given center , starting the interpolation at the given angle 。 angle must be specified in degrees between 0 and 360.

另请参阅

setColorAt() setStops()

Constructs a conical gradient with the given center ( cx , cy ), starting the interpolation at the given angle . The angle must be specified in degrees between 0 and 360.

另请参阅

setColorAt() setStops()

PySide2.QtGui.QConicalGradient. angle ( ) ¶

返回类型

qreal

Returns the start angle of the conical gradient in logical coordinates.

另请参阅

setAngle() stops()

PySide2.QtGui.QConicalGradient. center ( ) ¶

返回类型

QPointF

Returns the center of the conical gradient in logical coordinates.

另请参阅

setCenter() stops()

PySide2.QtGui.QConicalGradient. setAngle ( angle ) ¶

参数

angle – qreal

集 angle to be the start angle for this conical gradient in logical coordinates.

另请参阅

angle()

PySide2.QtGui.QConicalGradient. setCenter ( center ) ¶

参数

center – QPointF

Sets the center of this conical gradient in logical coordinates to center .

另请参阅

center()

PySide2.QtGui.QConicalGradient. setCenter ( x , y ) ¶

参数

• x – qreal

• y – qreal

这是重载函数。

Sets the center of this conical gradient in logical coordinates to ( x , y ).

另请参阅

center()
