PySide.QtGui.QStyleOptionToolBar class is used to describe the parameters for drawing a toolbar.
PySide.QtGui.QStyleOptionToolBar contains all the information that PySide.QtGui.QStyle functions need to draw PySide.QtGui.QToolBar .
For performance reasons, the access to the member variables is direct (i.e., using the . or -> operator). This low-level feel makes the structures straightforward to use and emphasizes that these are simply parameters used by the style functions.
PySide.QtGui.QStyleOptionToolBar class holds the lineWidth 和 midLineWidth for drawing the widget. It also stores information about which area the toolbar should be located in, whether it is movable or not, which position the toolbar line should have ( positionOfLine ), and the toolbar's position within the line ( positionWithinLine ).
In addition, the class provides a couple of enums: The QStyleOptionToolBar.ToolBarFeature enum is used to describe whether a toolbar is movable or not, and the QStyleOptionToolBar.ToolBarPosition enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.
对于可以如何使用样式选项的演示范例，见 样式 范例。
| 参数： |
|
|---|
构造 PySide.QtGui.QStyleOptionToolBar , initializing the members variables to their default values.
构造副本为 other 样式选项。
This enum is used to hold information about the version of the style option, and is defined for each PySide.QtGui.QStyleOption 子类。
| 常量 | 描述 |
|---|---|
| QStyleOptionToolBar.Version | 1 |
The version is used by PySide.QtGui.QStyleOption subclasses to implement extensions without breaking compatibility. If you use qstyleoption_cast() , you normally do not need to check it.
另请参阅
QStyleOptionToolBar.StyleOptionType
This enum is used to hold information about the type of the style option, and is defined for each PySide.QtGui.QStyleOption 子类。
| 常量 | 描述 |
|---|---|
| QStyleOptionToolBar.Type | The type of style option provided ( SO_ToolBar for this class). |
The type is used internally by PySide.QtGui.QStyleOption , its subclasses, and qstyleoption_cast() to determine the type of style option. In general you do not need to worry about this unless you want to create your own PySide.QtGui.QStyleOption subclass and your own styles.
另请参阅
QStyleOptionToolBar.StyleOptionVersion

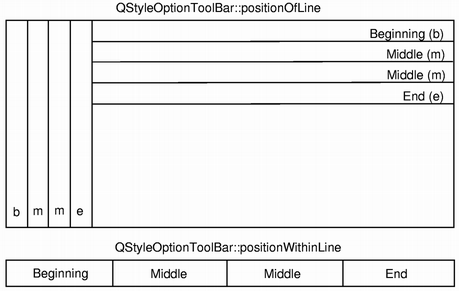

This enum is used to describe the position of a toolbar line, as well as the toolbar's position within the line.
The order of the positions within a line starts at the top of a vertical line, and from the left within a horizontal line. The order of the positions for the lines is always from the the parent widget's boundary edges.
| 常量 | 描述 |
|---|---|
| QStyleOptionToolBar.Beginning | The toolbar is located at the beginning of the line, or the toolbar line is the first of several lines. There can only be one toolbar (and only one line) with this position. |
| QStyleOptionToolBar.Middle | The toolbar is located in the middle of the line, or the toolbar line is in the middle of several lines. There can several toolbars (and lines) with this position. |
| QStyleOptionToolBar.End | The toolbar is located at the end of the line, or the toolbar line is the last of several lines. There can only be one toolbar (and only one line) with this position. |
| QStyleOptionToolBar.OnlyOne | There is only one toolbar or line. This is the default value of the positionOfLine and positionWithinLine 变量。 |
另请参阅
positionWithinLine positionOfLine
This enum is used to describe whether a toolbar is movable or not.
| 常量 | 描述 |
|---|---|
| QStyleOptionToolBar.None | The toolbar cannot be moved. The default value. |
| QStyleOptionToolBar.Movable | The toolbar is movable, and a handle will appear when holding the cursor over the toolbar's boundary. |
另请参阅
features QToolBar.isMovable()
